Are power curves affected by wake?

A turbine in the wake of another sees slower wind, so it should make less power. Yet plotted against its own anemometer, one Hill of Towie turbine shows 16.5% more power in the wake at the same measured wind speed.

← All insights

A turbine in the wake of another turbine sees slower wind and makes less power. That loss is real. The power curve plotted against the turbine’s own nacelle anemometer tells a different story.

Splitting almost three years of data from one Hill of Towie turbine between waked and unwaked periods shows the waked curve sitting higher, not lower.

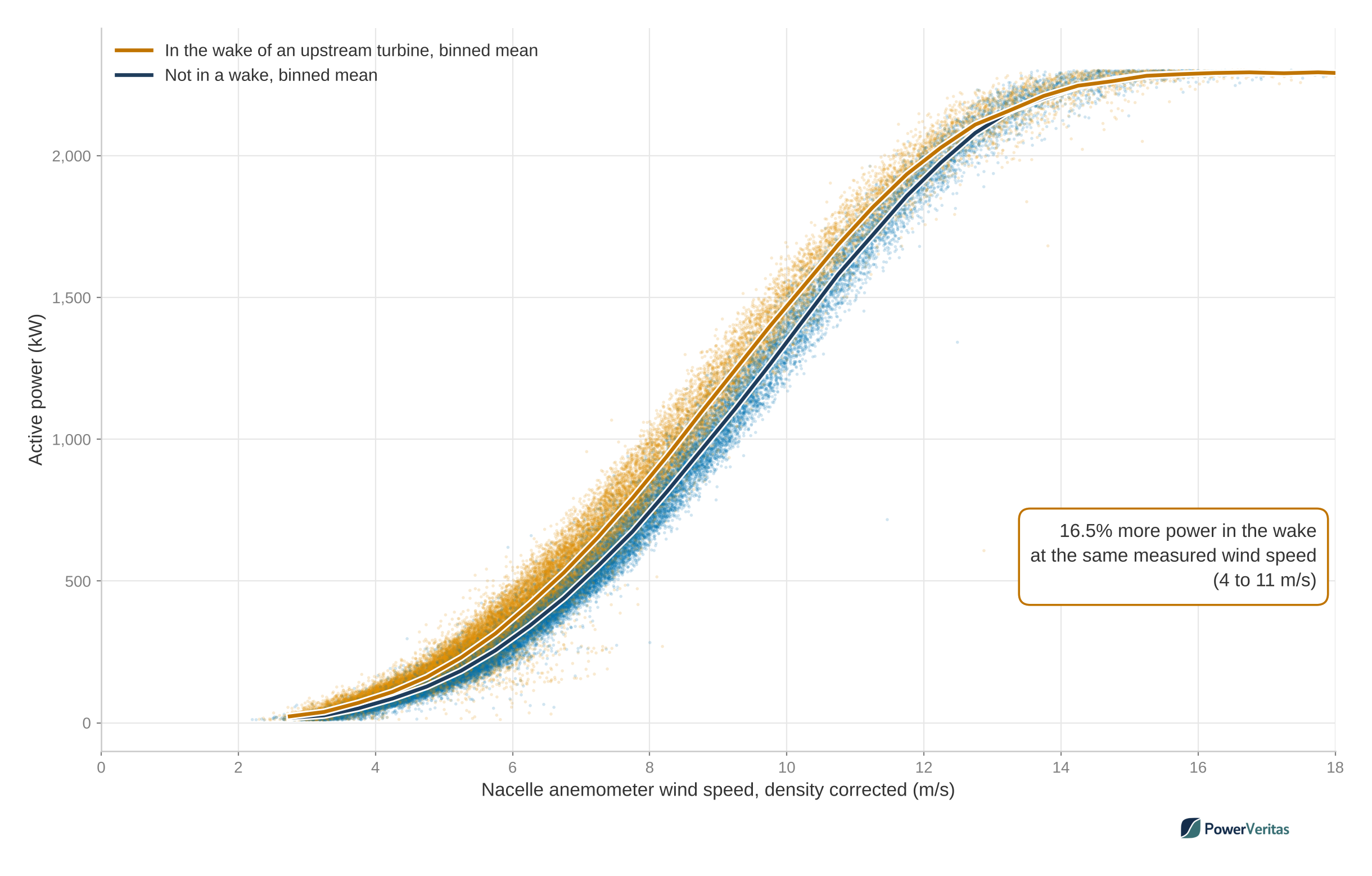

Power curve for one Hill of Towie turbine from June 2023 to April 2026, with records in the wake of an upstream turbine in orange and records not in a wake in blue. The waked binned mean sits above the unwaked binned mean from about 3 to 13 m/s and meets it above rated power. A label reads 16.5% more power in the wake at the same measured wind speed, 4 to 11 m/s.
Power curve for one Hill of Towie turbine, June 2023 to April 2026, split between records in the wake of an upstream turbine and records not in a wake. Wind speed is the turbine’s own nacelle anemometer. Points are ten minute records and lines are 0.5 m/s binned means.

The waked curve sits higher below rated

At the same measured wind speed, waked power is 16.5% higher between 4 and 11 m/s. Above rated the two curves meet, because the turbine is limiting its own output.

The turbine is not producing more energy in the wake. It is producing more power than its anemometer’s wind speed suggests.

The anemometer sits in the slowest part of the wake

A wake can be thought of as a cone of slow air behind the upstream turbine, slowest at its centre and recovering towards its edges.

When the wind blows along the line between two turbines, the downstream nacelle anemometer sits on the wake centre line at hub height. The outer part of the rotor sees faster air than the anemometer measures, so the anemometer under reads the wind the rotor is using.

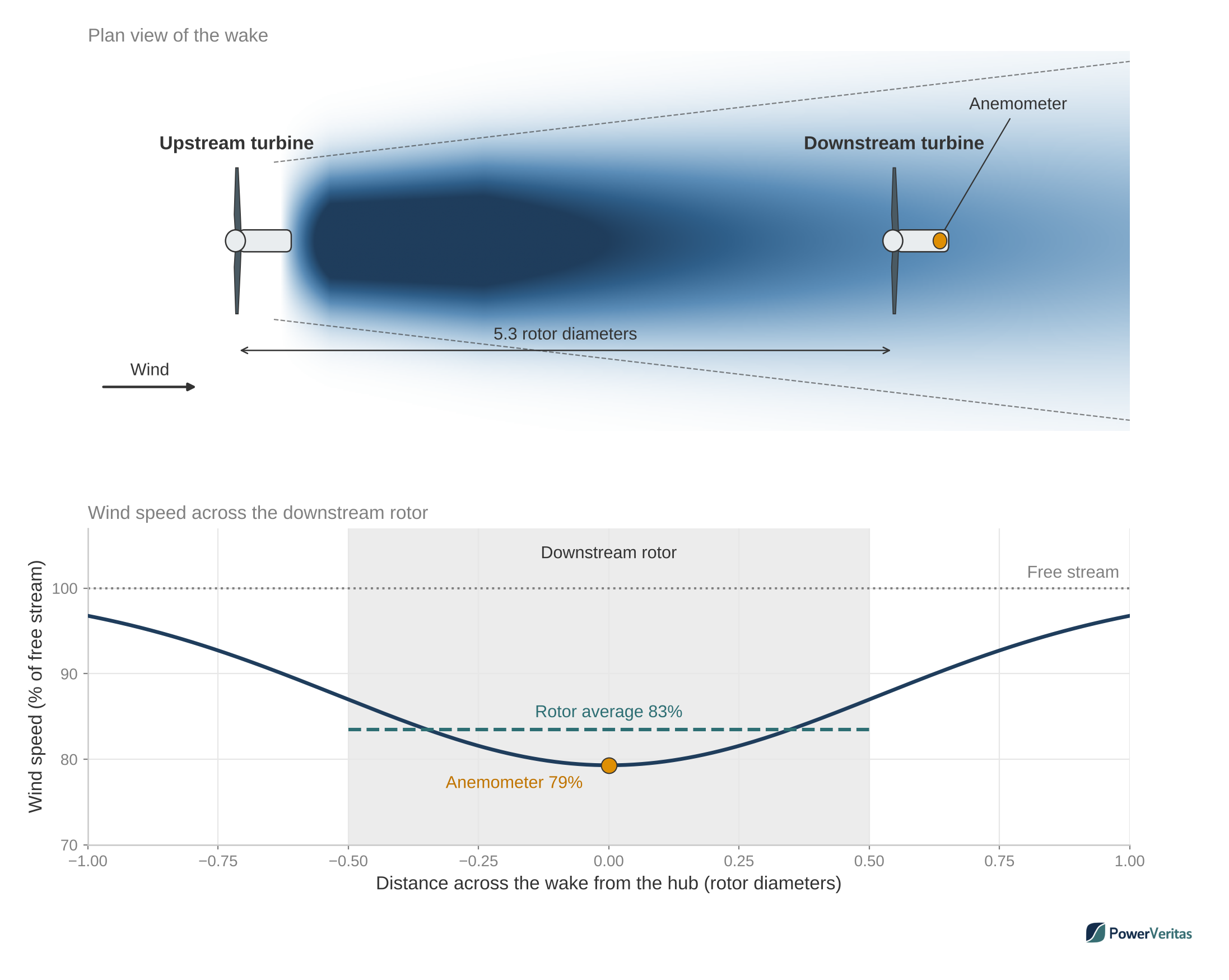

Two panel diagram. The top panel is a plan view of a wake spreading behind an upstream turbine, darkest close behind it and lighter as it widens, with a downstream turbine 5.3 rotor diameters away and its nacelle anemometer marked on the wake centre line. The bottom panel shows wind speed across the downstream rotor, lowest at the hub where the anemometer reads 79% of the free stream, against a rotor average of 83%.
An illustrative wake 5.3 rotor diameters downstream, the spacing between this turbine and one of its upwind neighbours. The anemometer on the wake centre line sees less wind than the rotor as a whole.

In this illustrative wake the anemometer sees 79% of the free stream wind and the rotor as a whole sees 83%, a gap of about 5%. Below rated, power rises with roughly the cube of wind speed, so a 5% gap in wind becomes roughly 17% in power. On this turbine, binning the data by power rather than by wind speed puts the waked anemometer about 6% low.

Turbulence adds to the effect. The nacelle anemometer reads a turbulence intensity of about 0.23 in the wake against 0.16 out of it. Higher turbulence increases power at lower wind speeds and reduces it around the knee of the power curve. Turbulence from a nacelle anemometer is unreliable record by record, as covered in whether a nacelle anemometer can measure turbulence, so this shows the direction of the effect rather than its size.

What the data shows

  • On one turbine, waked power is 16.5% higher than unwaked power at the same measured wind speed, between 4 and 11 m/s.
  • Across 19 turbine pairs on the site, waked power is higher in every pair, from 2% to 37% with a median of 21%.
  • Binned by power, the waked anemometer on this turbine reads about 6% low.
  • Roughly 37% of this turbine’s classified records are waked.

Why this matters for performance assessment

This is a measurement effect, separate from the real wake loss, which still reduces the output of the downstream turbine.

IEC 61400-12-1 excludes waked sectors from power curve tests. That makes sense when testing what a turbine model can produce. It does not suit an operational assessment of what a turbine will produce, where waked periods can be a large share of the data. A power curve that mixes the two makes a turbine look better than it is, and a change in the share of waked data between two periods can look like a change in performance.

Method notes. Turbine T06 at Hill of Towie, ten minute SCADA from June 2023 to April 2026, normal operation only with flagged records removed. A record is waked when the site wind direction is within 8° of the bearing from a running turbine within 10 rotor diameters upstream. It is unwaked when that direction is more than 30° from every turbine within that distance, and records in between are left out. Wind speed is the primary nacelle anemometer normalised to air density. The wake diagram is illustrative, not fitted to this site.

PowerVeritas keeps all operational data in its Performance Reviews, then categorises and quantifies each major loss, so wake effects are measured rather than filtered away.

Charts and analysis by PowerVeritas. Where open datasets are used, sources are credited on the attributions page.
